Products
Products Range
Which are completely maintenance free

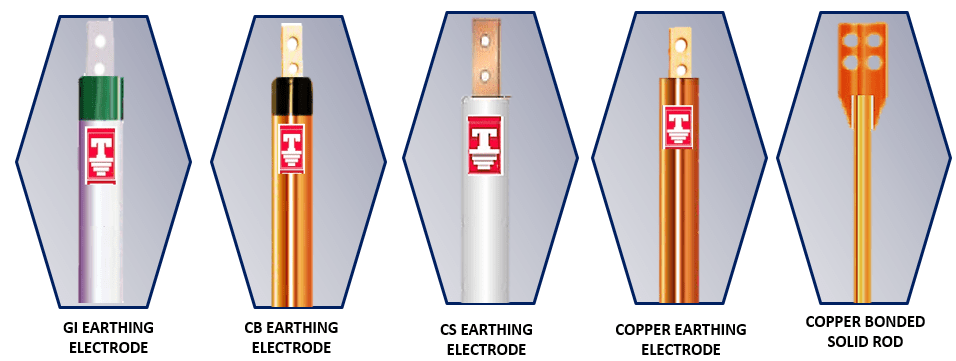

ADVANCED EARTHING ELECTRODE :
- HOT DIP GALVANIZATION IS PERFORMED TO PROTECT FROM CORROSION.
- COPPER BONDED ( CB ) COATING OF 100 TO 250 MICRONS.
- COPPER STRIP ( CS ) IN GI PIPE EARTHING ELECTRODE.
- PURE COPPER EARTHING ELECTRODE .
- COPPER BONDED SOLID ROD ARE LOW CARBON HIGH TENSILE STEEL ROD WITH COPPER COATING UPTO 250 MICRONS .
- AVAILABLE IN STRIP IN PIPE / PIPE IN PIPE ELECTRODES OF 1 TO 3 MTRS LENGTH.

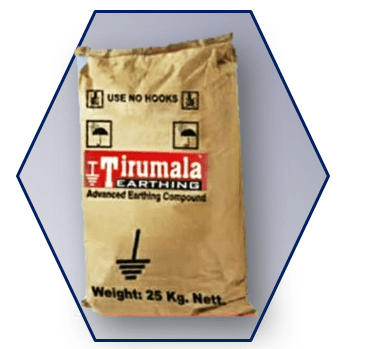

ADVANCED EARTHING COMPOUND :
TIRUMALA Earthing system comes with a Compound named Back Fill Compound (B.F.C) which has all the qualities of the ideal back fill material for an Earthing system. It is easily compacted and when water is added to it. It will absorb up to 13 times its dry volume. This consistently hold its own shape and adhere to any surface it touches. These capabilities resolve the issues of compatibility and soil/rod contact that are crucial to an Earthing system BFC absorbs whatever moisture is present

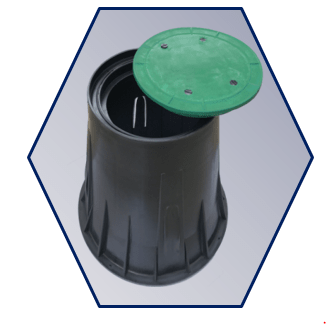

POLYMER EARTH INSPECTION CHAMBER:
Environment friendly rust proof heavy duty weather proof Polyplastic earth pit chamber Model: PPC 01
MAIN FEATURES Factory built long holes for accessing strips/ wires at four side. Made of heavy duty polyethylene for extra durability. Resistant materials, assuring long use-life.
Green top cap matches the environment.
DIMENSIONS At Top (Dia) = 254 mm At Bottom (Dia) = 330 mm Height = 260 mm

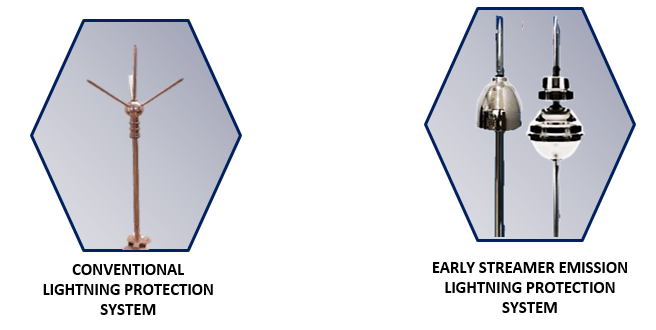

LIGHTNING PROTECTION SYSTEMS E.S.E MODELS : COSMOS / KALRE ( MADE IN TURKEY )
- STANDARD NFC 17-102 (2011 ) LATEST VERSION
- NON – CORROSIVE XL 304 PURE STAINLESS STEEL.
- DIFFERENT MODELS AVAILABLE WITH PROTECTION RADIUS UPTO 156 MTRS .
- 6 DIGITS LIGHTNING EVENT COUNTER ( IP 65 ).
- CARRIES WARRANTY FOR 10 YEARS.
- CPRI TESTED.
